About
The latest digital DJI Transmission system is designed to interface with DJI Ronin and Master Wheels devices. Provides video and audio signal transmission over long distances and also allows you to manage and monitor the filming process on large sites.
The latest digital DJI Transmission system is designed to interface with DJI Ronin and Master Wheels devices. Provides video and audio signal transmission over long distances and also allows you to manage and monitor the filming process on large sites.

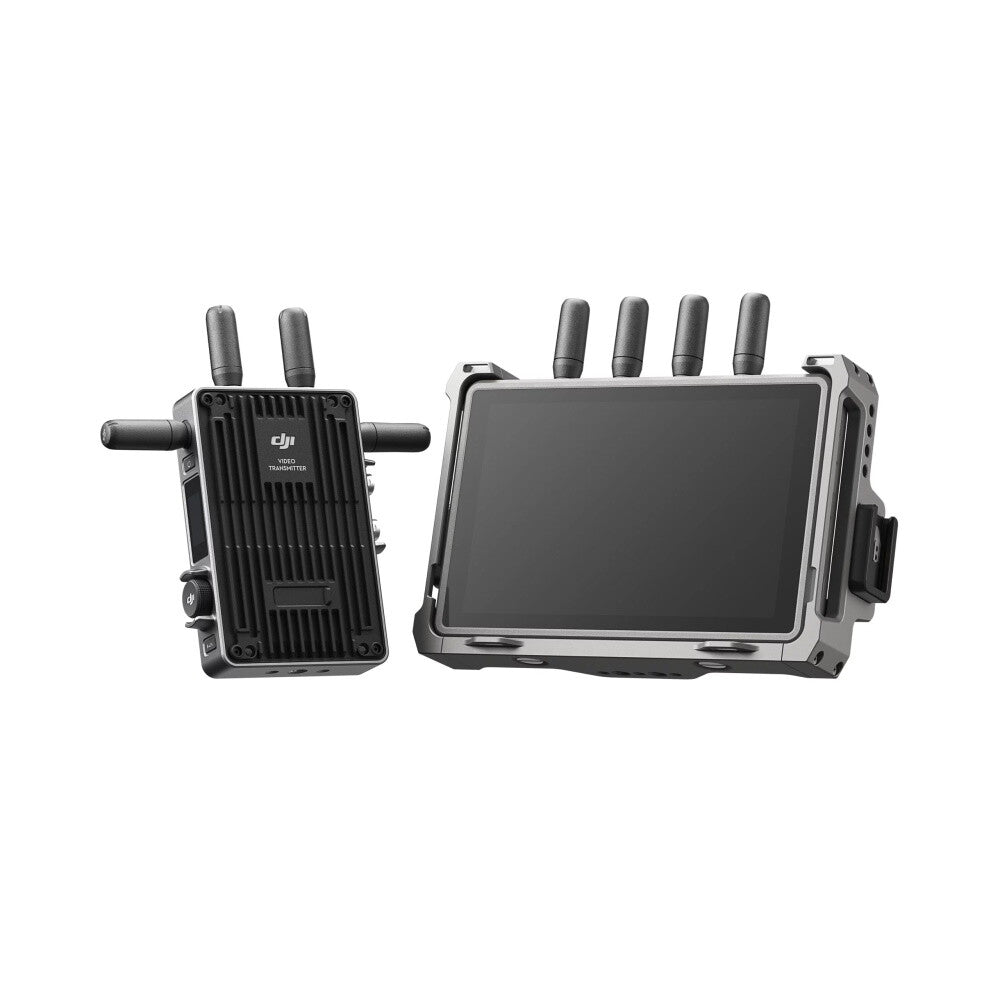

DJI Transmission, Black
- Regular price
- AED 8,110.00
- Sale price
- AED 8,110.00
- Regular price
-
Additionally, upon delivery, you will have to pay customs duty and last-mile delivery of ~369.36 AED.
Technical characteristics
Weight:
Video transmitter weight: about 350 g (without antennas)
High Brightness Remote Monitor Weight: Approx. 727 g (without antennas)
Dimensions:
Video Transmitter: 127×87×26 mm (L×W×H without antennas)
High Brightness Remote Monitor: 213×135×51 mm (L×W×H without antennas)
Operating frequency range:
Non-DFS frequency range:
2, 4000–2 4835 GHz
5, 150-5, 250 GHz
DFS frequency range:
5, 250-5, 350 GHz
5, 470-5, 600 GHz
5, 650-5 725 GHz
Transmitter power (EIRP):
2, 4000–2 4825 GHz:
<33 dBm (FCC)
<20 dBm (SRRC/CE/MIC)
5, 150-5 250 GHz:
<23 dBm (FCC/SRRC/MIC)
5, 250-5 350 GHz:
<30 dBm
<23 dBm (SRRC/MIC)
5, 470-5, 600 GHz, 5, 650-5 725 GHz:
<30 dBm
<23 dBm (CE/MIC)
Max. bandwidth - 40 MHz
Max. bitrate - 40 Mbit/s
Power consumption - 11 W
Power supply voltage - From 6 to 18 V
Output voltage - Power output port: 6 to 18 V
Operating time - Video transmitter: 3 hours 40 minutes / High brightness monitor: 2 hours
Input video format:
3G SDI: YCb
Cr 4:2:2 10 bit
HDMI RGB 4:4:4
1080p : 23 98/24/25/29, 97/30/50/59, 94/60 fps
1080i: 50/59, 94/60 fps
720p: 50/59 94/60 fps
Output video format:
3G SDI: YCb
Cr 4:2:2 10 bit
1080p: 23 , 98/24/25/29 , 97/30/50/59 , 94/60 fps
1080i: 50/59 , 94/60 fps
720p: 50/59 94/60 frames per second
Input audio format - SDI built-in HDMI built-in
Output audio format - PCM
Video transmission system - O3 Pro
Video transmission delay - 68 ms / 100 ms
Video encoding format - H. 264
Max. signal transmission range - 6 km (FCC) / 4 km (CE/SRRC/MIC)
Operating temperature range - from −10 to 45 °C
Supported camera models in mirror control mode - ZV1/A7 III/A7S III/A7M III/A7R III/A7R IV/A7 IV/FX3/A7S II/ A6600/A6400 and all Sony cameras with BRAVIA support (HDMI control).
